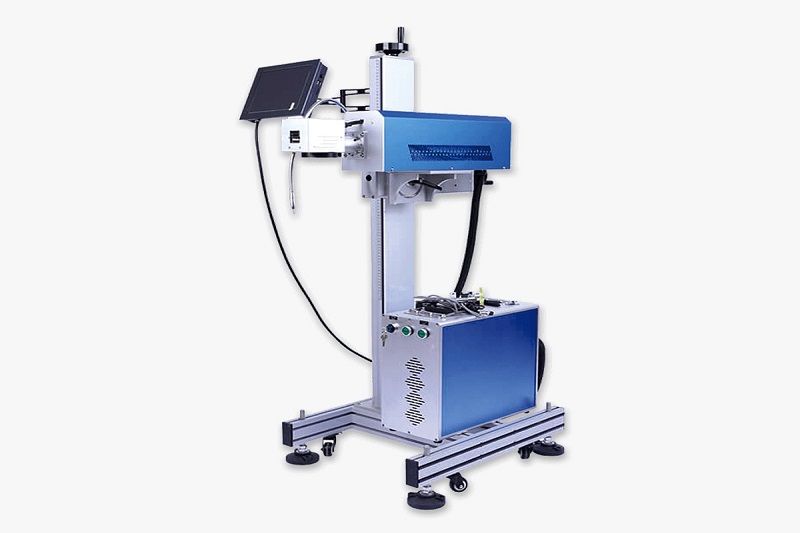

Technical Specifications:
- Laser Ytterbium Fiber Laser (Multi Diode EP): Class IV.
- Average Lase O/P Power 20 Watts (Optional 10W).
- Max. Peak Power >8 kW.
- + Wavelength 1060-1070 nm.
- Pulse repetition Rate 20-80 KHz.
- Pulse Width 100 ns.
- Typical Beam Quality M2 = 1.4.
- Mode of Operation Pulsed.
- Pulse Energy @ 20 kHz 1 m).
- Rd Pointer for Positioning Visible Red Light (636 nm).
Marking Specifications:
- Marking Speed up to 7000 mm/sec.
- Marking Fields 110(std.)/155/215mm2 (Optional).
- Work Clearance 185/296/387 mm.
- Character Size 0.22mm.
Electrical.
- Power Connection 220V 10 V AC, 1 Phase.
- Power consumption < 1KVA.
SOFTWARE:
Compatible with Windows 2000/XP/7/8. PLT, DXF, .BMP, JPG & Other Vector & Bitmap Images are supported by the software for Marking.
